Bollard Load Testing
We can verify the integrity of full mooring bollard assembly including body, anchor bolts, anchors, and surrounding/concrete structure & Capable to mobilize anywhere in the globe with short notice to provide mooring bollard load testing service by Portable mooring bollard test bed arrangements without using tugs and vessels. EIWAA Marine Service uses a portable bollard pull test assembly of up to 200T Capacity for performing bollard pull testing and certification to reduce accidents in ports, shipyards, maintenance yards, etc.
Periodic Inspection, SWL/Proof Load testing of all types of Marine mooring bollards including various capacities of A-Type mooring bollards, B-Type Mooring bollards, C-Type Mooring bollards, D & E Type Mooring bollards, Cast Iron/Ductile type mooring bollards like Single Bitt Mooring bollards, Double Bitt mooring bollards, T-Head Mooring bollard, Stag horn type bollard, Kidney type and cleats type bollard etc.
Lifting Approvals (Marine/Offshore)
EIWAA Marine Services in UAE approved by all the Major IACS classification Societies with ISO/IEC 17020 accreditations and Major Port Approvals. Mooring Bollard load testing Services are related to ensure the safe structural integrity inspection of bollards by portable test bed with/without the help of tugboat arrangements. Mooring bollards have a vital role for the safe mooring of ships and vessels at Major UAE Ports. As a Marine Third-Party Inspection Services in UAE, we have proven track records of bollard testing and certification in Jebel Ali Ports, DP World, Drydock world, Port of Fujairah, Port Khalid, AD Port Authority Ports, Port Zayed, ASRY, Saudi Ports Authority, NEOM, Dammam Port etc.
- All Major Classification Society under IACS
- Llyord’s Register
- American Bureau of Shipping(ABS)
- Indian Register of Shipping (IRS)
- Bureau Veritas (BV)
- ISO/IEC 17020
- All Major Ports of UAE
ZONE CERTIFICATION SERVICES
All the equipment used offshore shall undergo a certification to ensure it meets the safety standards as well as minimizing the risks. Offshore equipment may electrical, non-electrical or Personal Protective Equipment (PPE). All the electrical equipment must comply with electrical safety (e.g., IEC 60079 series) that cover intrinsic safety, flameproof enclosures, and increased safety methods. Non-Electrical Equipment inspection covers valves, pumps, and mechanical devices must also be assessed for potential ignition sources. Personal Protective Equipment certification use in hazardous environments, particularly in areas classified as Zone 0, Zone 1, or Zone 2.
Hazardous Zone Classifications generally follow the International Electrotechnical Commission (IEC) and the ATEX directives. Zone Certification services in UAE classifies the areas are,
- Zone 0 – It is a hazardous area in which an explosive gas atmosphere is present continuously or for long periods (greater than 1,000 hours/year).
- Zone 1 -It is an area where an explosive gas atmosphere is likely to occur in normal condition (between 10 and 1,000 hours/year).
- Zone 2-It is an area where an explosive gas atmosphere is not likely to occur in normal operating hours but, if it does occur, will persist for a short period of time (less than 10 hours per year).
Zone Certification Services in UAE follows the requirements of ATEX (EU Directive 2014/34/EU) and IECEx Standards. After Equipment certification, all the equipment’s must carry a clear marking, indicating its compliance with relevant standards of hazardous certifications and it includes Zone classification, temperature class requirements and group identification etc.
Importance of Portable Mooring Bollard Testing at Shipyards and Ports
Mooring bollard test and certification by Portable testing Equipment (Up to 200 Ton) in ports, Shipyards, jetties, and yards ensures the safe structural integrity of bollards. Load Testing and certification of marine mooring bollards in mooring direction includes failure analysis of the Mooring bollard body, Bollard Cylinder, Failure analysis of weld at the base the of bollard cylinder, and failure analysis of anchor bolt of mooring bollard etc.
- Bollard Pull Test
- Tugboat Engine Horsepower
- Bollard NDT Test
- Brake Holding Testing of Winches
Frequently Asked Questions
Mooring Bollard Load Testing is approved by all major ports across the world in order to ensure the safe integrity assessment of bollards. Bollard Pull Testing Services incorporates Non-Destructive Testing Services, Proof Load Testing Inspection Services, Laser Measurement Service, Non-Destructive/Dimensional control services, Total Station Survey services etc. Non-Destructive Services may be Surface NDT Inspection of Eddy Current Testing and Magnetic Particle Test or MPI Test. Along with bollard inspection, we are committed to provide the service of concrete inspection services as well as Anchor Bolt pull Testing Services for better results.

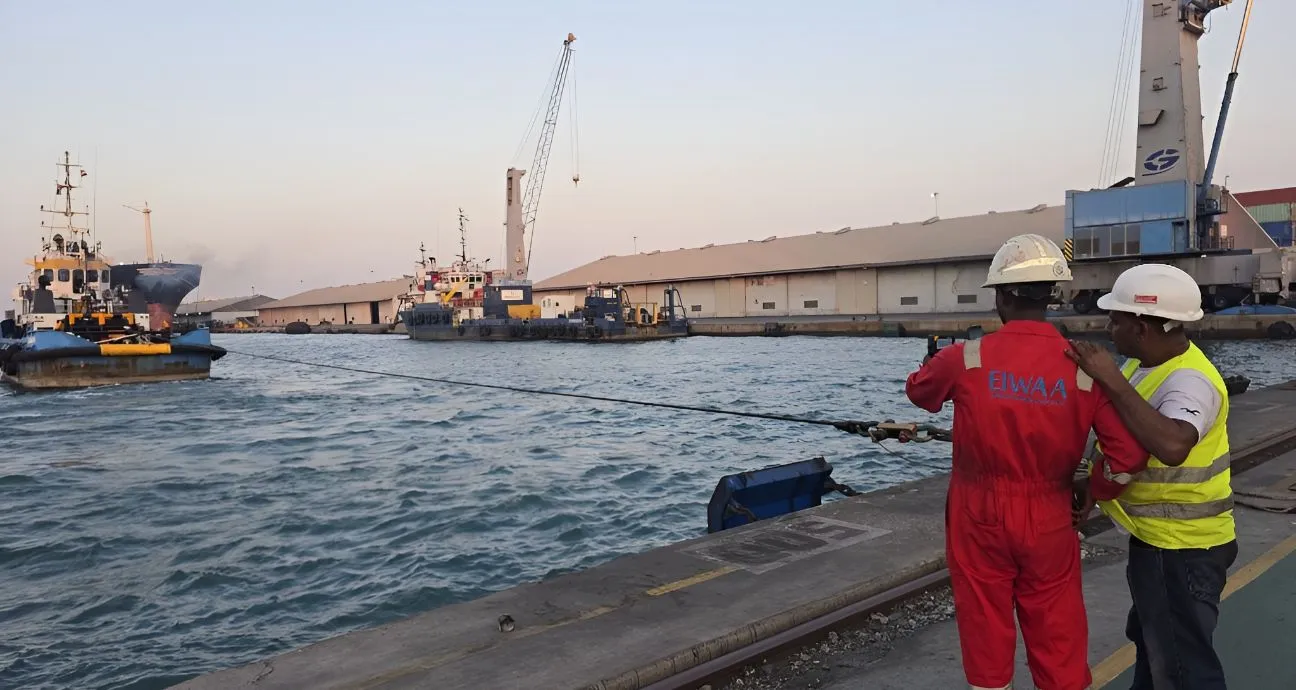

Bollard load testing service is the structural assessment and Safe working load/SWL of bollard by Portable Test bed at Yards/Jetties. Bollard Pull Test is measuring the Engine horsepower or BHP of tugboat by pulling the tugboat against the Mooring bollard at Quay wall area & the load measure by dynamometer load cell and Lifting accessories.
Steps of Bolt testing is remove the grouts and nuts, Pull Test by 110% of its SWL by Portable mooring test bed, conduct the condition assessment by NDT Testing, Replace the failure parts and Reinstall grout and nuts, Painting etc.
As a Part of Periodic Berth equipment inspection, bollards and its surrounding quay wall area needs to
conduct thorough inspection by NDT Inspection, Load Testing of bollards, welding failure inspection, Deflection measurement, Painting inspection and corrosion checking, condition assessment of bollard, Condition monitoring of bollards, Concrete inspection, Anchor Bolt Inspection etc.
